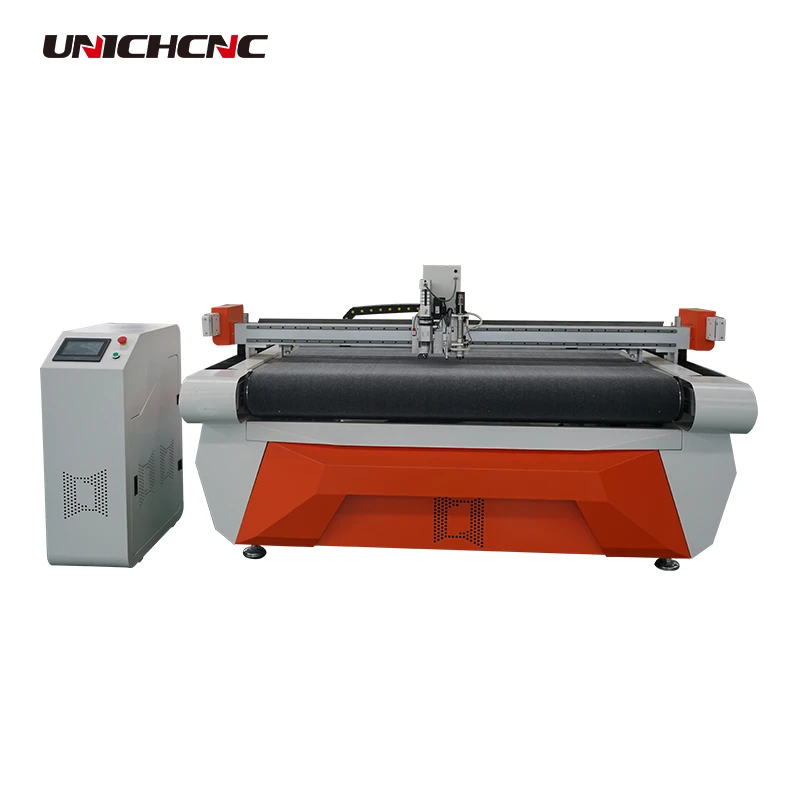

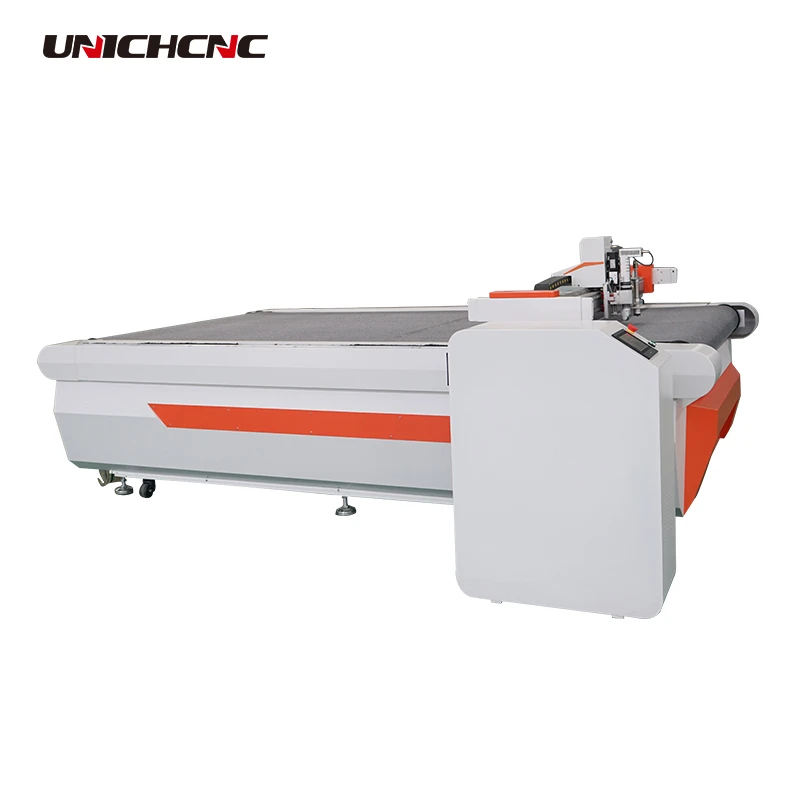

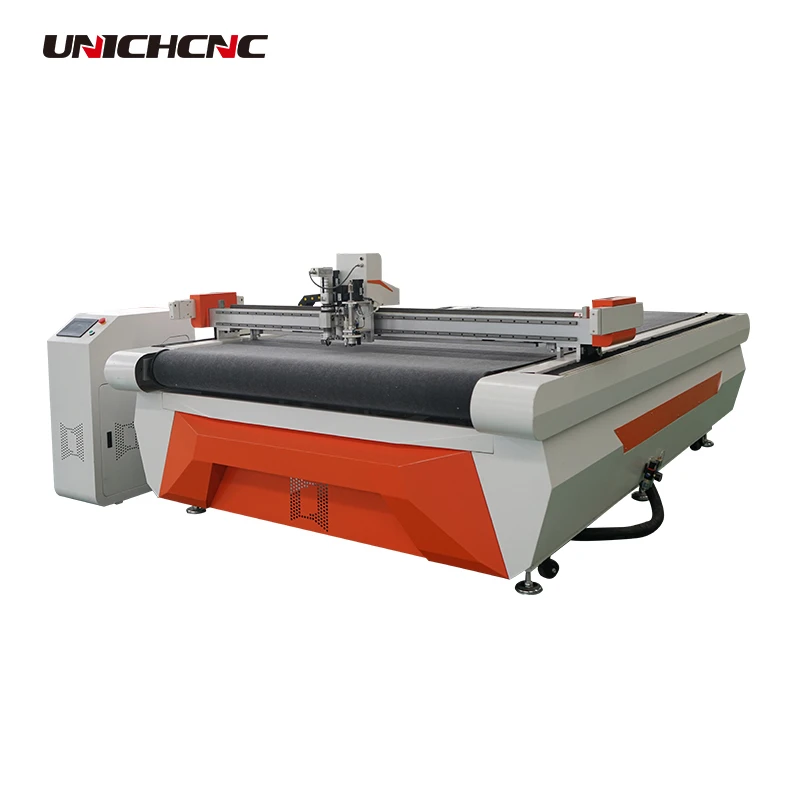

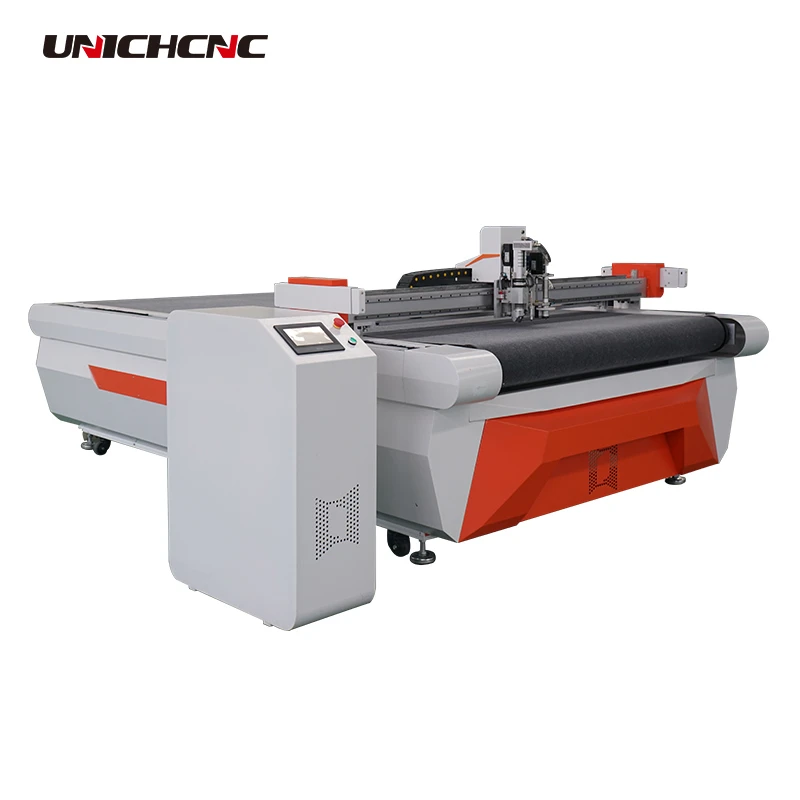

Factory price vertical sponge foam cutting machine cnc cutter

Model NumberLXZ-1625

ConditionNew

Brand NameUNICHCNC

CNC or NotCNC

namecloth cutting machine parts

Working area2500*1600mm

Rated power11KW

Cutting speed200-800mm/s(according to different cutting materials)

Cutting materialsLeather, cloth,leather,pvc,Silicon,rubber etc.

Repeated accuracy0-0.1mm

flat plate tableflat plate table

Tool configurationMultiple cutting knives

Safety deviceUsing infrared sensors, responsive, safe and reliable.

translational velocity800-1200mm/s

Factory price vertical sponge foam cutting machine cnc cutter

Product Description

Features :Automatic Oscillating Knife Flatbed Fabric Cutting Machine Plotter Cutter for Corrugated Cardboard

1. Imported Taiwan square linear guide and Japanese servo motor ensure high accuracy, fast cutting speed and stable working performance;
2. Whole machine is welded with thick square seamless steel structure and treated with high temperature, ensures high accuracy, no deformation and super long service life;
3. The whole piece aluminum platform is honeycomb structure, not easy to deform, sound-absorbing, etc.
4. Digital cutting machine was designed easy to install, set-up and operate;
5. Being equipped with infrared sensor and emergency stop devices, guarantees safety;
6. Cutting by knife not laser, no air pollution, no burnt edge, cutting speed is 5-8 times faster than laser cutting machine;

Configuration

Parameter:

Model	LXZ-1625	LXZ-1618(1325optional)	LXZ-1625 (auto feeding)
Working area	1600×2500mm	1600*1800mm	2500×1600mm
Machine size (mm)	3450×2300×1250	265023001250	3600×2300×1250
Rated power	11KW		11KW
Fixed mode	flat plate table		Auto feeding type table

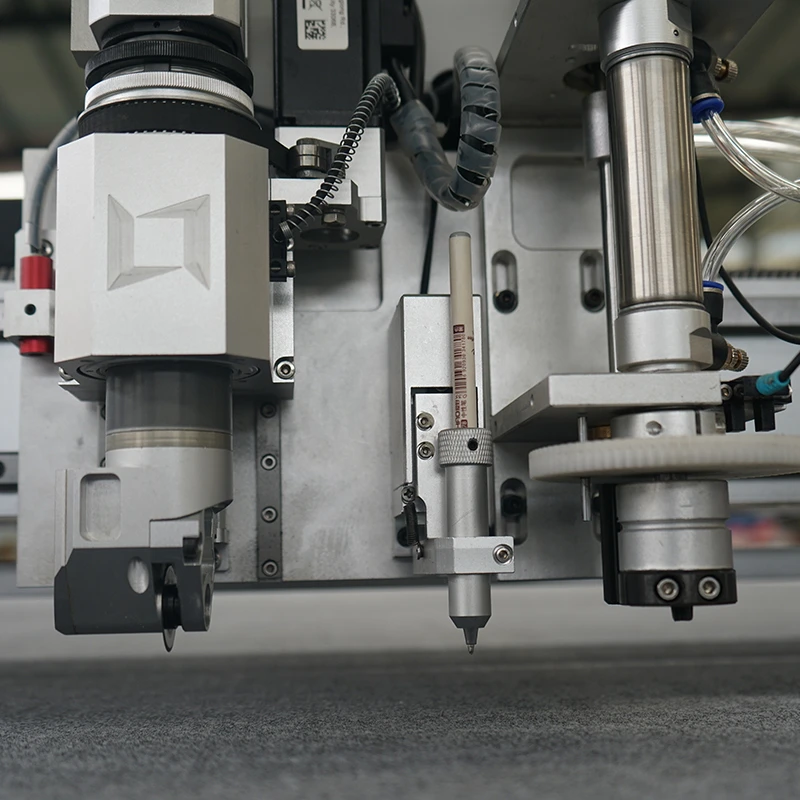

Multifunctional head	Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configuration	Multiple cutting knives
Safety device	Using infrared sensors, responsive, safe and reliable.
translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Cutting materials	Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format

Voltage	380V±10%
Other configuration	Japanese Yaskawa servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 9.0kw vacuum pump

Application:

Automatic Oscillating Knife Flatbed Fabric Cutting Machine Plotter Cutter for Corrugated Cardboard digital knife cutting machine suit for leather, fabric, textile, cardboard, plastic box, fiber glass,corrugated cardboard, sticker, film, foam boardrubber, cloth, gasket material, garment cloth, footwear material,bags materials, non-woven fabrics,seat cover, carpets/rugs, sponge, PU, EVA, XPE, PVC, PP, PE, PTFE, ETFE and composites.

Samples

Our Services

JINAN UNICH MACHINERY CO.,LTD

is established in July 2004 ,owns more than 500 square meters of researching and office space,

more than 32000 square meters factory.All machines ,passed the European Union CE authentication,American FDA certificate and are certified to ISO 9001. Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc,

more than 120 countries and areas, and supply OEM service for more than 30 manufactures.

Our Products includes All kind of

1. CNC knife cutting machine

2. Laser marking machine(Fiber/CO2/UV/Green light)

3. Laser cutting machine

4. Plasma cutting machine

5. CNC router and so on.

We can also customized non-standard assist equipment as your detailed work requirements.

Before order,the next information is necessary to read :FAQ

FAQ

Q1 :How about warranty?

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me your

1) Max work size:choose most suitable model.

2) Materials:choose most suitable knife cutter.

3) Cutting thickness:Power of knife cutter

4) Cutting sample effect:confirm knife suitable again and whether CCD or other optional parts is needed or not.

5) Business industries:We sell a lot and give advice on this business line.

Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don’t know how to use after i receive Or i have problem during use,how to do?

A5:

1) We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2) If have any problem during use,you need our technician to judge

The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
